Tired
of paying inflated prices for inferior quality?
Now you can buy direct from IWM.

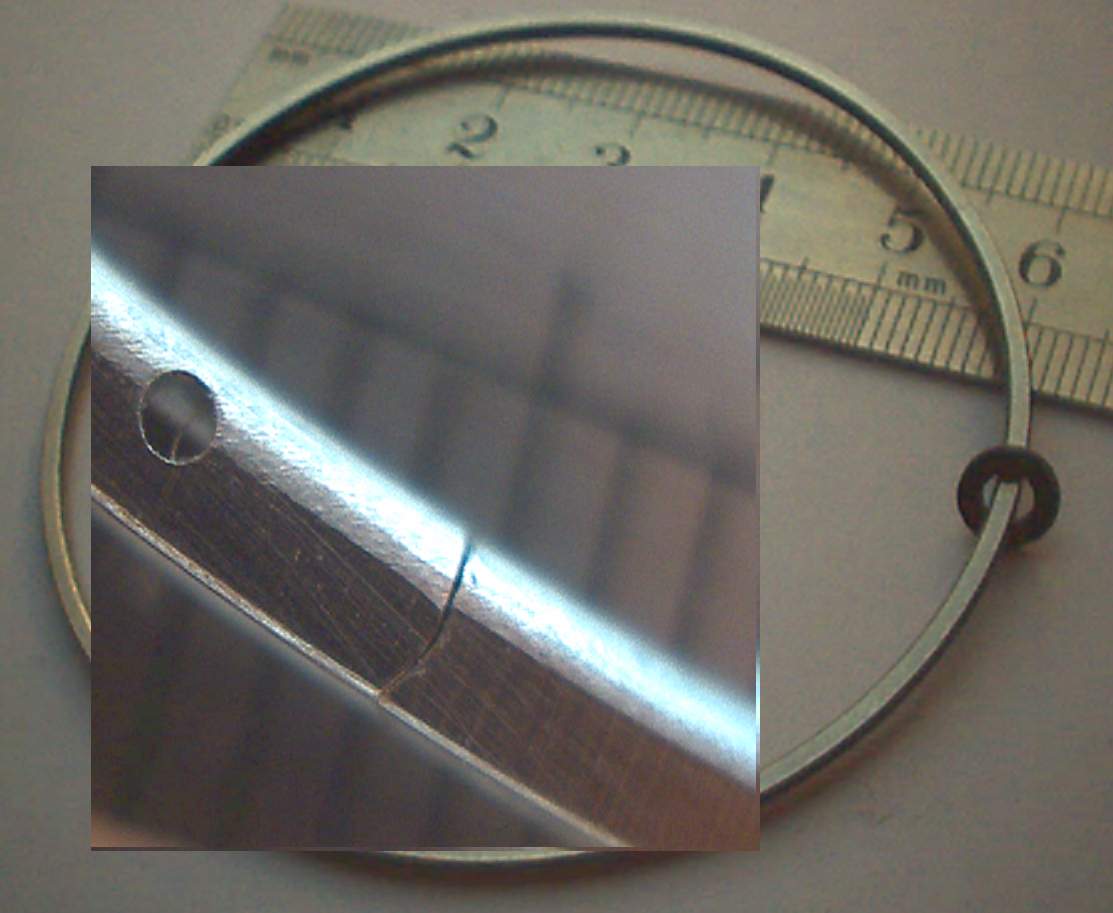

Careful selection of materials together with close-tolerance machining maximises the working life of our shuttles.
Here are some comments from end users..
|
"Required less 'bedding in' time." "Excellent quality of joint." "When can I have some more?" |
Product benefits:
-
Quality engineered to Aerospace standards.
-
Superior material specifications.
-
Extended working life.
-
Enhanced surface finish eliminates wire scratching
-
Factory-direct pricing.
Furthermore we can now manufacture virtually any shuttle from a sample, even an old or worn-out part will do.
Including:-
-
Size - nominal diameter 4" or 6"
-
Drive - "Geared" or "Friction"
-
Type - "Belt" , "Side Slider" or "Wire Slider"
What's more we believe on a like for like basis, our prices are not only competitive, but....
Unbeatable!!

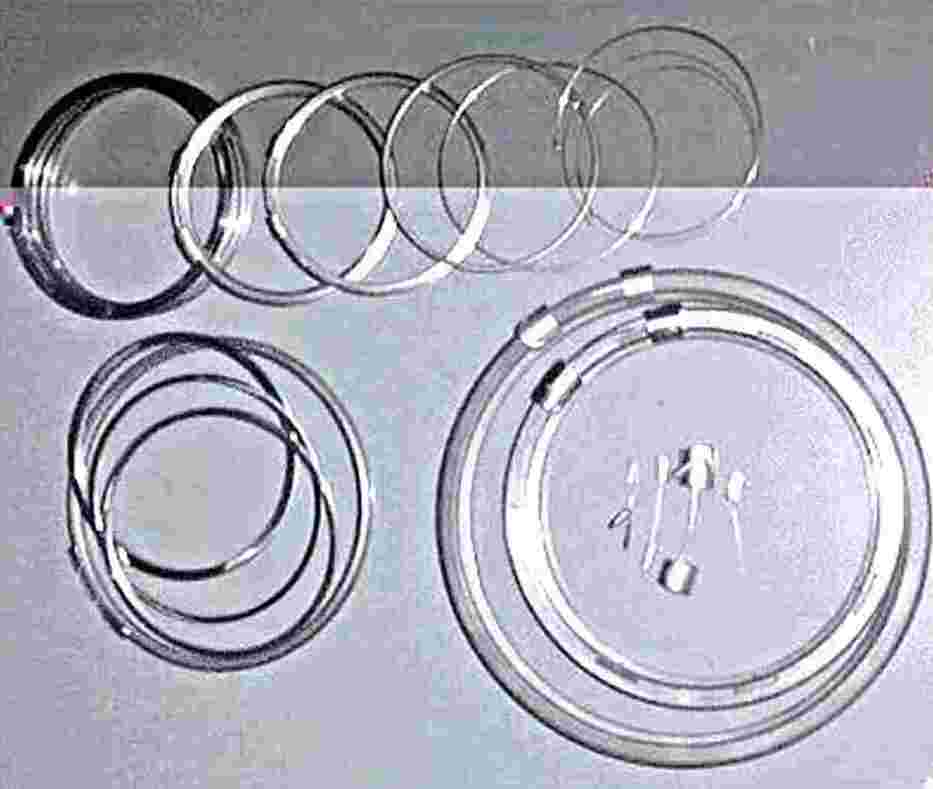

Shuttle types we have already made...
|
Machine type |
Shuttle Type |
Manufacturer's Part number |
Description |
|
Ruff |
Belt |
C-60 1,65, |
( 60mm x 1,65mm) |
|
C-100 1,6 |
(92mm x 1,60mm) |
||
|
RW 200/5 |
Fits RW 200 winding head |
||
|
RW 200/4 |
Fits RW 200 winding head |
||
|
Side slider |
RW 20/10 |
(139mm x 5,9mm) |
|
|
Universal |
5" -440 |
(138,9mm x 9,8mm) |
|
|
7" -320 |
(177,8mm x 6,79mm) |
||
|
7" -440 |
(177,8mm x 9,85mm) |
||
|
7" -560 |
(177,8mm x 12,1mm) |
||
|
7" -625 |
(177,8mm x 12,95mm) |
||
|
7" -750 |
(177,8mm x 15,3mm) |
||
|
Jovil |
4X4S |
(92,3mm x 5,3mm) |
|
|
4x4 SBOS |
(92,3mm x 5,5) |
||
|
Gorman |
Side slider |
1/4x4 |
4" |
|
Belt |
TS4B 312 |
4" |
|
|
TSB 115 |
4" |
||
|
TSB 135 |
4" |
||
|
TSB 187 |
4" |
||
|
CCW |
Side slider-geared |
224-002 |
4*7/32 4" gear drive shuttle- drive roller also available |
If the type you need is not listed above, do not despair, we can still help, call us to find out more...
