Biphedre

Hot -air bonding with thermoplastic coated wire

- The Biphedre  produces coils with wire from 0,010mm up to 1,00 mm
- The Biphedre  produces coils with core dia from 0,3 mm up to 80 mm
- The Biphedre  is a fully automated single spindle system

The Biphedre  combines the most advanced electronics and with our traditional mechanical precision, we can offer a winder with exceptional reliability and flexibility. The design permits short tooling changeover time and its base programming, interface and touch screen allows rapid and easy modification in a user-friendly manner.

The main applications are: Motors, reed relays, microphones, loudspeakers, clocks, inductance coil, laser reading heads, sensors, RFID coils, chips etc.. All winding characteristics are in the base program. You will select rotation direction, winding type, wire position, pitch, input and output, winding speed, heating temperature...

The PC guiding system makes it possible to save and store many programs, it also has a database, which gives production data, allowing easier production control.

TECHNICAL SPECIFICATION			Bipheder with unloading on conveyor. OPTIONS Skeiner to reinforce the start and finish leads. Unloading systems via clamps or vacuum onto conveyor, or turntable systems Synchronised tailstock for coils of less than 0.7mm ID. Tooling and handing device for coil sets. Loading systems for cores Accessories and options are constantly being developed - we would be happy to discuss any option not listed above.
	Dimensions :	1000 x 1000 x 1750 mm (W x D x H).
	Weight:	250 kg
	Wire diameter :	0.01 to 1.0 mm.
	Bobbin diameter :	0.7 mm to 100 mm .*
	Product length :	35 mm.*
	Speed range :	up to 24,000 Rpm
	Radial Position :	less than 1 deg/min
	Programming axis :	3 Servo axis
	Control	PC with touch screen 12''
	Automatic unloading in bulk to a holding tray
	* other dimensions on request
3-axis servo system with Motion control, 32-bit Digital Signal processor, Can-bus OPEN, Digital and analog I/Os GS-Automation Management System - WINDOWS based, for machine control, Internet connection and Video Control

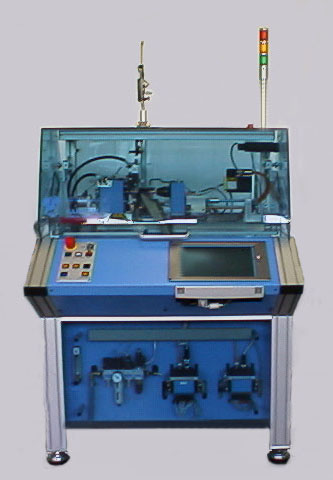

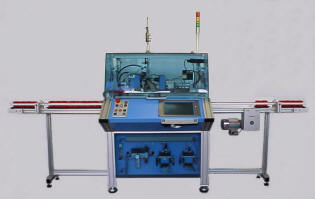

Biphedre equiped with a belt conveyor for the products unloading		Control panel and 12'' touch screen

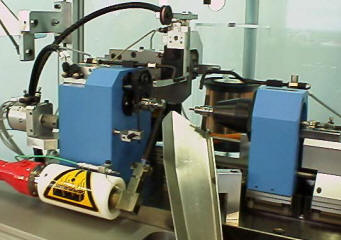

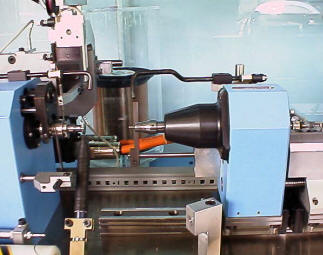

Spindle and tailstock system		Heating system and products unloading ramp

Ask our specialists to evaluate your application and be sure  we will find the most appropriate solution to your problem
